By Light in the Space · Wall sconce guides for design and project buyers
For hallway wall sconces, check the full projection into the walking path before deciding spacing or appearance. Ask for a dimensioned side view, identify the applicable circulation requirements and coordinate every fixture with doors, trim and other wall-mounted objects. Then use lighting information and a mock-up to establish the final arrangement.
A narrow-looking fixture can still project substantially from the wall. A front photograph may hide an arm, mounting spacer, shade or curved element. The critical measurement is the distance from the finished wall to the outermost part of the installed fixture in its approved position.
Make the projection check an early design step
The U.S. Access Board’s protruding-object guide explains that wall-mounted objects along circulation paths with leading edges above 27 inches and below 80 inches are generally limited to a 4-inch projection. It also explains that these requirements are not limited to designated accessible routes.
Have the project architect or accessibility professional determine how the applicable requirements affect the actual installation, including required clear width and headroom. A supplier’s description of a fixture as “slim” is not evidence that the installed arrangement complies.
Read the drawing in plan and elevation

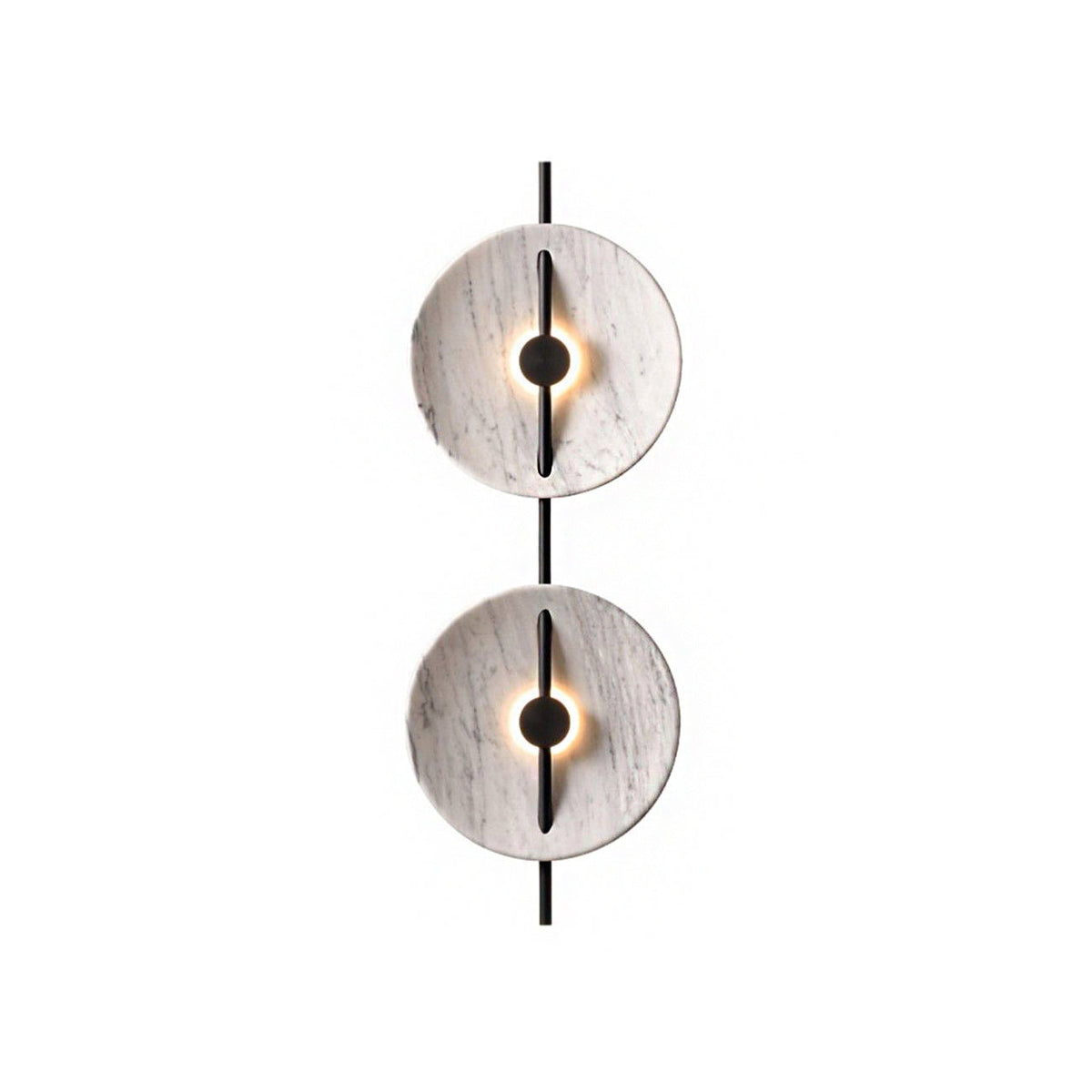

The Mito Marble Wall Lamp offers one- and two-head compositions. Choose the exact version before checking the fixture outline and electrical connection point. Its vertical form may suit a design concept, but the mounting position and full projection need their own review.
The Leigha Alabaster Wall Lamp provides a circular design direction. Compare its entire assembled depth with the proposed wall position, including the backplate and light source. Do not infer a dimension from the apparent size of the circular element in a photograph.
| Drawing item | Why it matters | Information to request |
|---|---|---|
| Overall projection | Shows the outermost obstruction | A side view from the finished-wall plane |
| Leading-edge height | Locates the projecting part vertically | Installed elevation, not only the box centerline |
| Backplate and connection | Coordinates the fixture with the wall construction | Backplate dimensions and electrical connection position |
| Doors and wall features | Reveals collisions and awkward visual alignment | Door swings, signage, artwork and trim on the same drawing |
A simple clearance calculation helps reveal conflicts
Consider an illustrative corridor with 60 inches between finished walls. If two directly opposing fixtures each extend 5 inches into that space, the distance between their outermost points is 60 − 5 − 5 = 50 inches. This calculation describes the geometry only; it does not establish a compliant route width or approve the projections.
Use the calculation to identify questions before purchase. Moving fixtures to alternate positions may change the visual rhythm, but it does not automatically resolve protruding-object requirements. Coordinate the complete arrangement with the project team.
Set spacing from the lighting task, not a universal rule
Identify whether the sconces provide decorative accents, general corridor light or a supplementary layer. Request photometric information when the design depends on measured performance. Without suitable data, approve a representative mock-up instead of treating a spacing number from another project as a calculation.
Compare the wall between fixtures, the floor and the view when approaching from both directions. Check glare and strong patches of light around textured surfaces. Decorative sconces should not be assumed to satisfy required emergency or egress lighting functions.
Questions to settle before the purchase order
Is the electrical box center the fixture’s installed center?
Not necessarily. The connection may be offset. Use the manufacturer’s drawing to locate the fixture relative to the box.
Can the projection be customized?
Ask for a feasibility review. Changing depth can affect the light source, mounting, heat management or applicable documentation, so an altered version needs a confirmed specification.
What should I send for corridor wall-light advice?
Provide a plan, wall elevation, required clearances, preferred product links, quantity and finish reference. Mark any project-specific accessibility, electrical or maintenance requirements for review.
